BALLINE GARNET MINE (KALBARRI) –
Detailed Design

KHOURI Engineering Services was engaged by Australian Garnet to completed the detailed ‘Issue For Construction’ design of the new garnet mine on George Grey Drive near Kalbarri.  The project included detailed design, construction specifications and Bill of Quantities for:

• the new intersection with George Grey Drive
• Approx. 2.5 km of mine road
• Detailed earthworks of mine plant including drainage
• Process water dam
• Maintenance area
• Pavement design, road lighting design, gravel sourcing investigation

Detailed Earthworks Plan

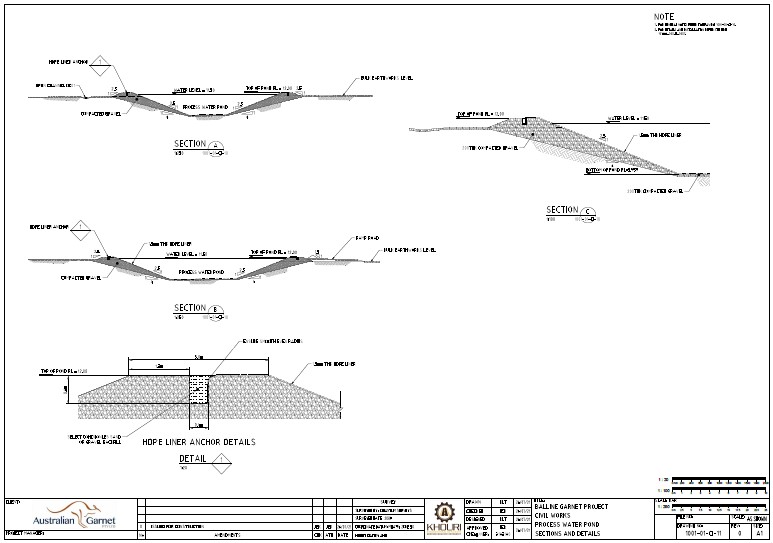

Process Water Pond

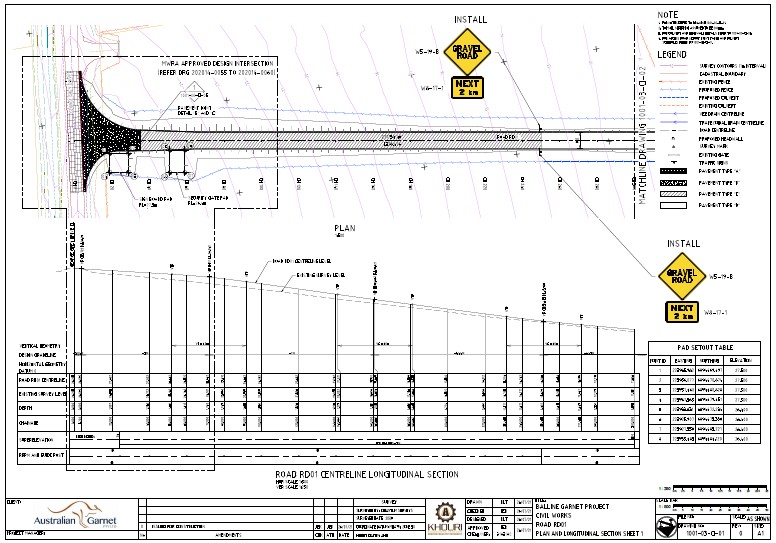

Road 1 – Plan and Longitudinal Section

Light-pole Slip-base Footing Design
